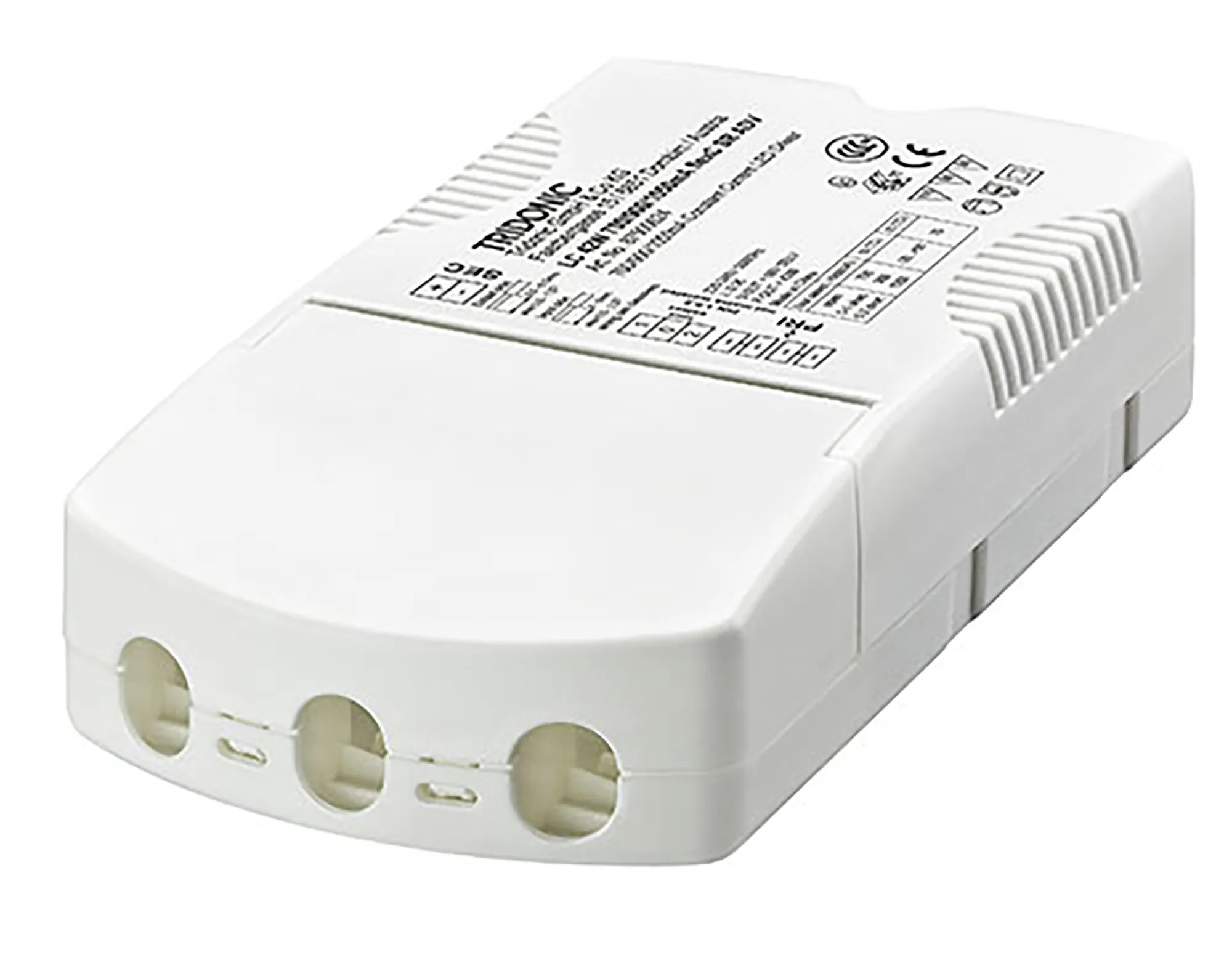

42W 700/900/1050mA flexC SR ADV Constant Current LED Driver

Tridonic, LC 42W 700/900/1050mA flexC SR ADV, LED Converter Compact ADVANCE, Made In PRC, 5yrs Warranty

87500624

Colour Finish :
White

Qty: Order Item Add to Wishlist

Independent constant current LED Driver, Adjustable output current between 350 and 500 mA, High efficiency, For luminaires of protection class I and protection class II, For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711, Temperature protection as per EN 61347-2-13 C5e.Long life.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description42W 700/900/1050mA flexC SR ADV Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.18kg

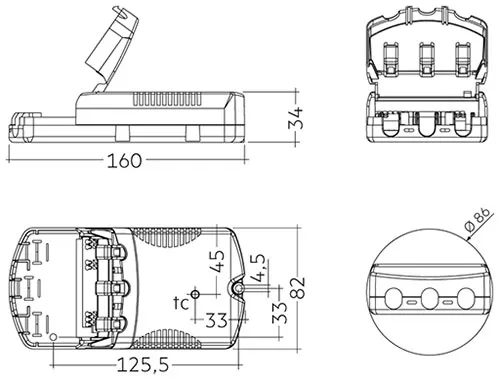

Length (mm)160mm
Width (mm)82mm
Height (mm)34mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Overload protection, Short-circuit protection, No-load protection, Over temperature protection.Burst protection voltage 1 kV, Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N to earth).
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description42W 700/900/1050mA flexC SR ADV Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.18kg
Length (mm)160mm
Width (mm)82mm
Height (mm)34mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)700/900/1050mA
Min/Max. Voltage Output (V)20-52V
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-20° to +40°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.88
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)42W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.23A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)16.0cm
Carton Width (cm)8.2cm
Carton Height (cm)3.4cm
Carton CBM0.0004
Carton Nett Weight (kg)0.18kg (±5%)
Carton Gross Weight (kg)0.18kg (±5%)
Additional DetailsTridonic, LC 42W 700/900/1050mA flexC SR ADV
UK Commodity Code8504409090
Country of OriginChina
