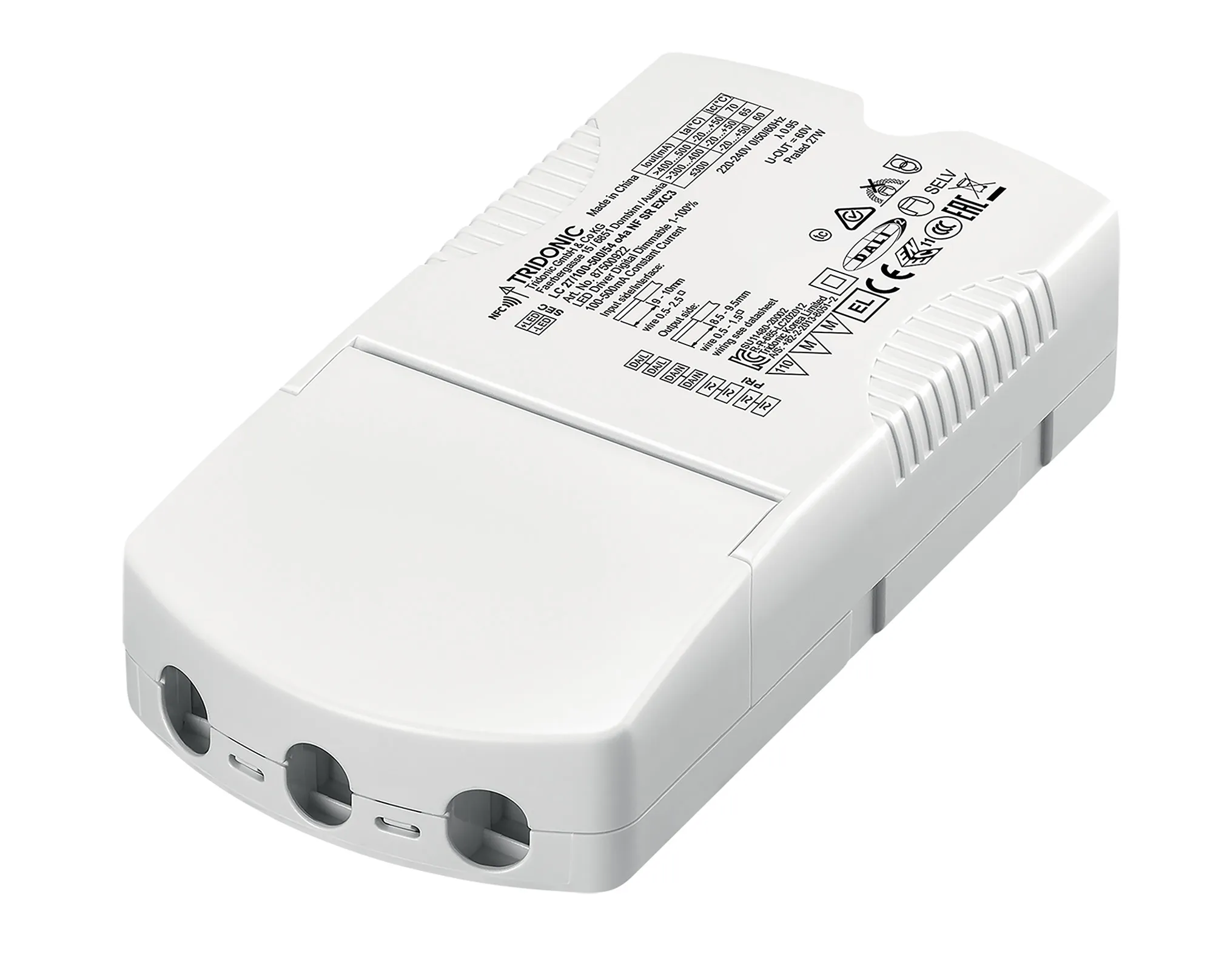

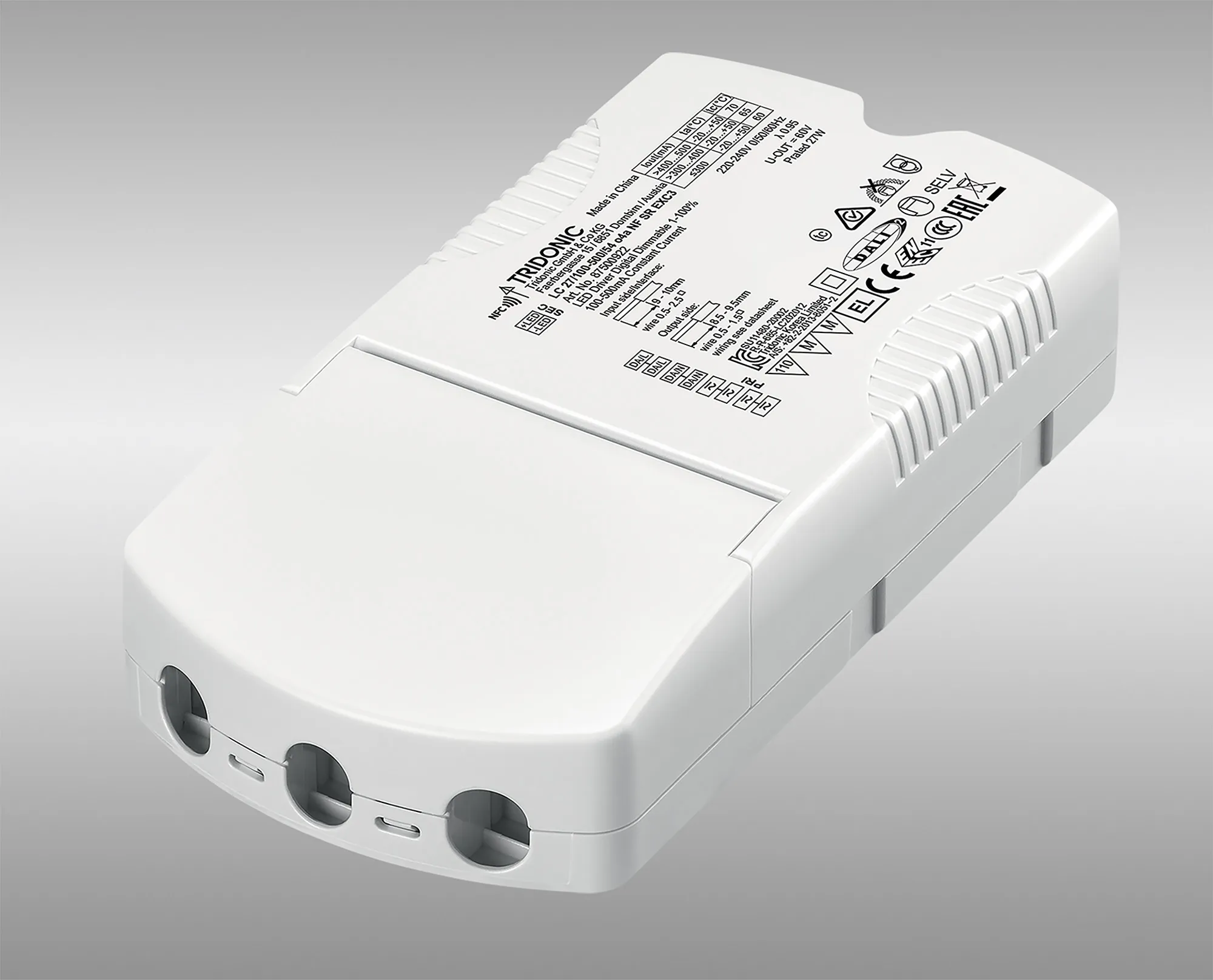

27W 100-500mA 54V o4a NF SR EXC3 EXCITE Constant Current LED Driver

Tridonic, LC 27W 100-500mA 54V o4a NF SR EXC3, LED Converter Compact SNC - EXCITE, Made In PRC, 5yrs Warranty

87500922

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current Fixed output built-in LED Driver, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e.Long life time.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description27W 100-500mA 54V o4a NF SR EXC3 EXCITE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.192kg

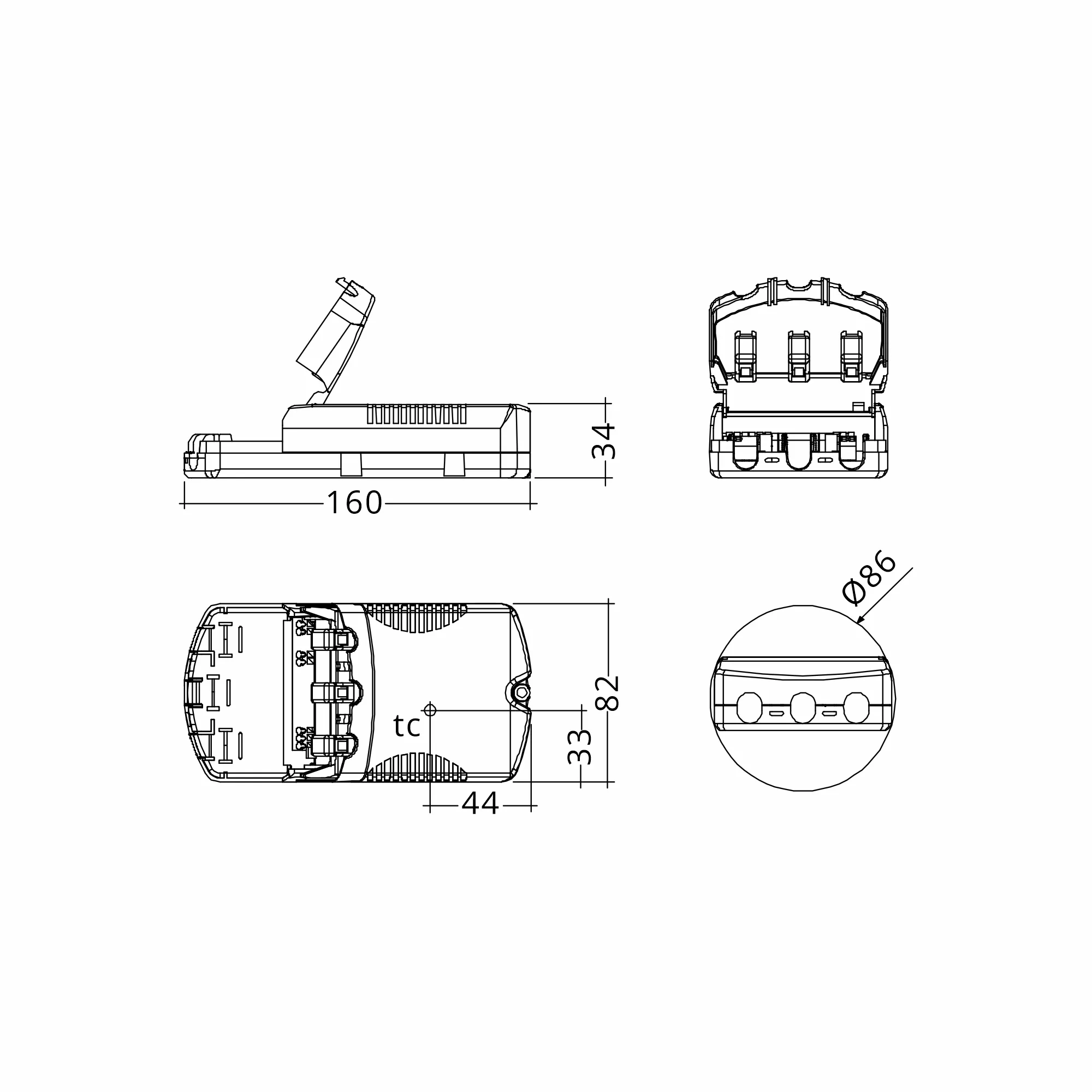

Length (mm)160mm
Width (mm)82mm
Height (mm)34mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupLC
Brief Description27W 100-500mA 54V o4a NF SR EXC3 EXCITE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.192kg
Length (mm)160mm
Width (mm)82mm
Height (mm)34mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)DALI
Constant Current Output (mA)100-500mA
Min/Max. Voltage Output (V)27-54V
Typical Current Ripple (%)±30%
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)27W (±5%)
Input Voltage (V)220-240V~50/60Hz
DimmableYes
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
UK Commodity Code8504409090
Country of OriginChina
