DIN-Rail 3CH DMX Decoder, 12-48V DC I/P, 350mA×4CH O/P, 64.4W, DMX512, RDM Dimming interface, IP20.

DIN-Rail 3CHannel CC DMX Decoder, 12/24/36/48V DC I/P, 350mA×4CH, 64.4W, PWM digital dimming, DMX512, RDM Dimming interface, 0-100% Dim,IP20.

DIN-DMX-350-4CH

Colour Finish :
White

Qty: Order Item Add to Wishlist

DIN-Rail Mounting DMX Decoder, Dimming interface: MX512, RDM.PWM digital dimming, 0-100% Dimming range. Suitable for indoor environments. Full protective plastic housing.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDIN-Rail 3CH DMX Decoder, 12-48V DC I/P, 350mA×4CH O/P, 64.4W, DMX512, RDM Dimming interface, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.135kg

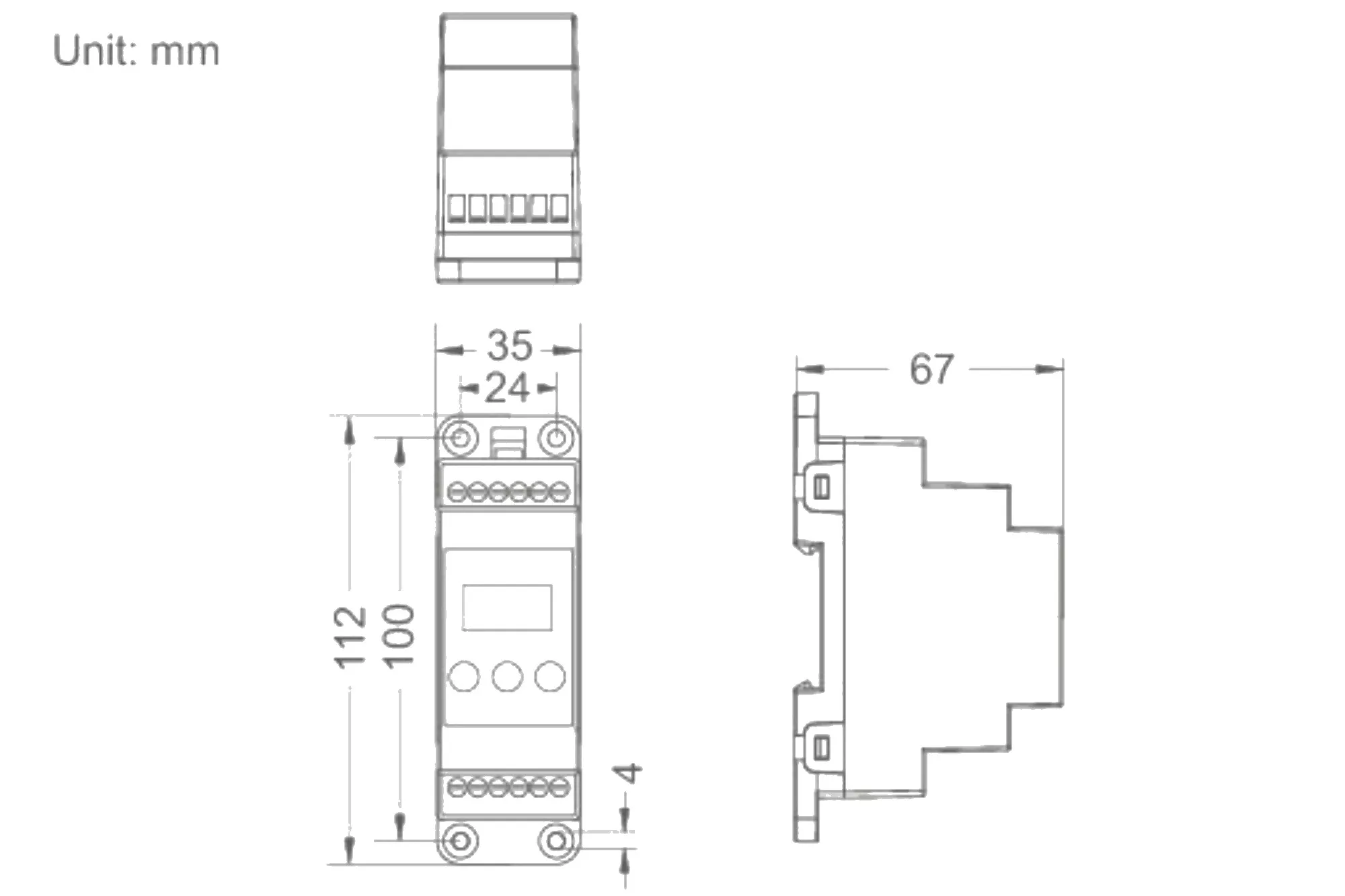

Length (mm)112mm
Width (mm)35mm
Height (mm)67mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Controller
OverviewDIN-Rail Mounting DMX Decoder, Dimming interface: MX512, RDM.PWM digital dimming, 0-100% Dimming range. Suitable for indoor environments. Full protective plastic housing.
Brief DescriptionDIN-Rail 3CH DMX Decoder, 12-48V DC I/P, 350mA×4CH O/P, 64.4W, DMX512, RDM Dimming interface, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.135kg
Length (mm)112mm
Width (mm)35mm
Height (mm)67mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Constant Current Output (mA)350mA
Min/Max. Voltage Output (V)3-46V
Load Range (W)64.4W
Ta (°C)-30°C to 55°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolDMX512/RDM, PWM
Input Voltage (V)12-48V DC
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)11.4cm
Carton Width (cm)3.7cm
Carton Height (cm)7.0cm
Carton CBM0.0003
Carton Nett Weight (kg)0.135kg (±5%)
Carton Gross Weight (kg)0.135kg (±5%)
Additional DetailsDIN-Rail CC Decoder, Easy Installation and Maintenance. DIN Rail Mounting Size: TS-35/7.5 or TS-35/15.
UK Commodity Code8543709990
Country of OriginChina
