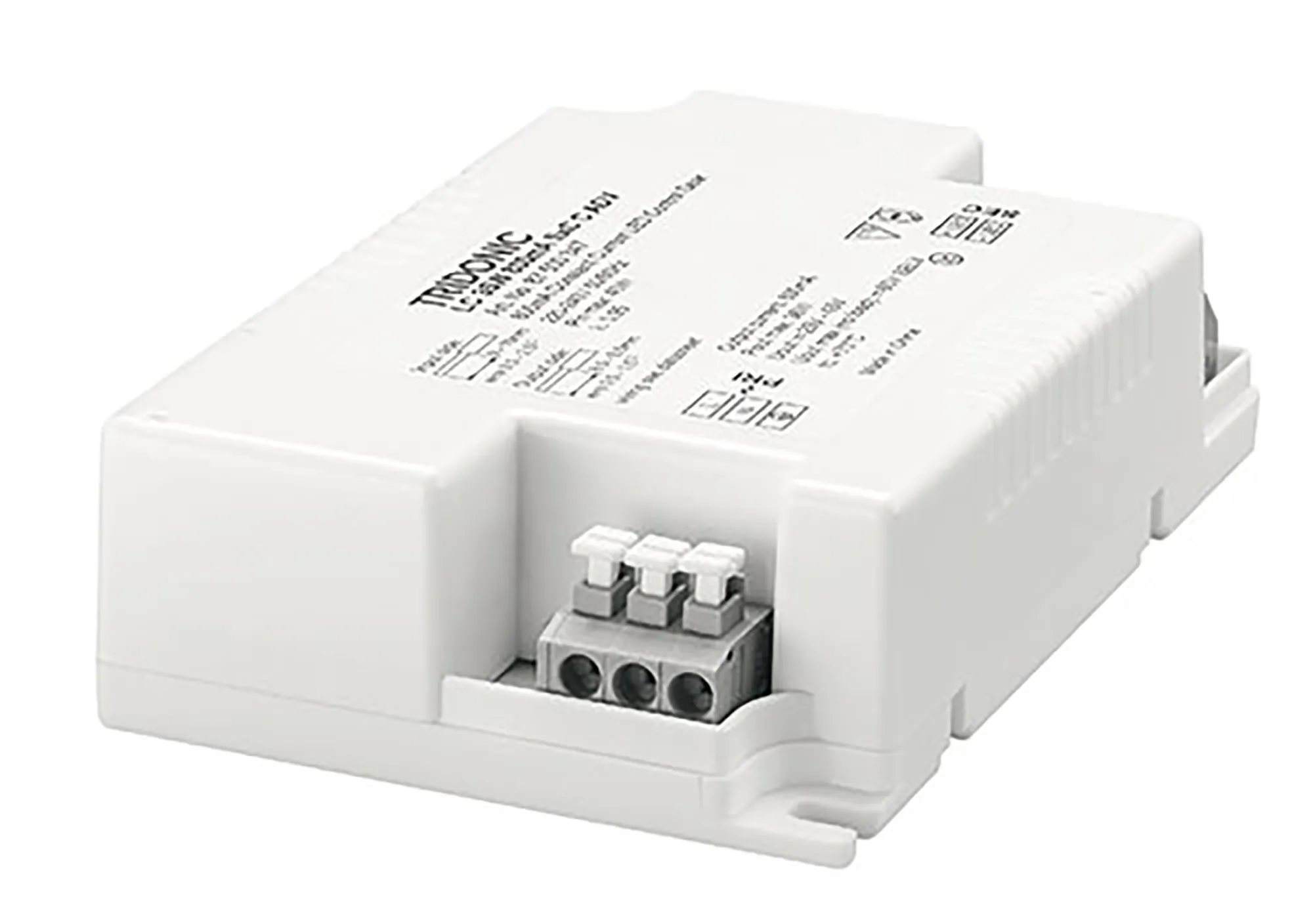

40W 900mA fixC C ADV Constant Current Led Driver

Tridonic, LC 40W 900mA fixC C ADV, LED Converter Compact ADVANCE, Made In PRC, 5yrs Warranty

87500348

Colour Finish :
White

Qty: Order Item Add to Wishlist

Fixed output Constant current LED Driver, Output current selection option, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e.Long working life.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description40W 900mA fixC C ADV Constant Current Led Driver
Colour FinishWhite
Item Nett Weight (kg)0.148kg

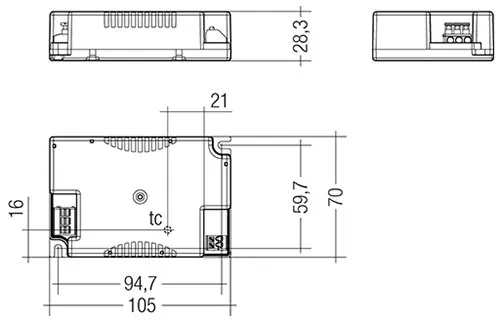

Length (mm)105mm
Width (mm)70mm
Height (mm)28.3mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Over heat, No load, Short circuit and idle protection. Burst ans Surge protection circuit integrated.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description40W 900mA fixC C ADV Constant Current Led Driver
Colour FinishWhite
Item Nett Weight (kg)0.148kg
Length (mm)105mm
Width (mm)70mm
Height (mm)28.3mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.98 (±5%)
Constant Current Output (mA)900mA
Min/Max. Voltage Output (V)25-45V
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-20° to +40°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.89
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)40W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.210A
DimmableNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)10.5cm
Carton Width (cm)7.0cm
Carton Height (cm)2.83cm
Carton CBM0.0002
Carton Nett Weight (kg)0.148kg (±5%)
Carton Gross Weight (kg)0.148kg (±5%)
Additional DetailsTridonic, LC 40W 900mA fixC C ADV
UK Commodity Code8504409090
Country of OriginChina
