8x4800 10W-1200lm/m 840 SNC

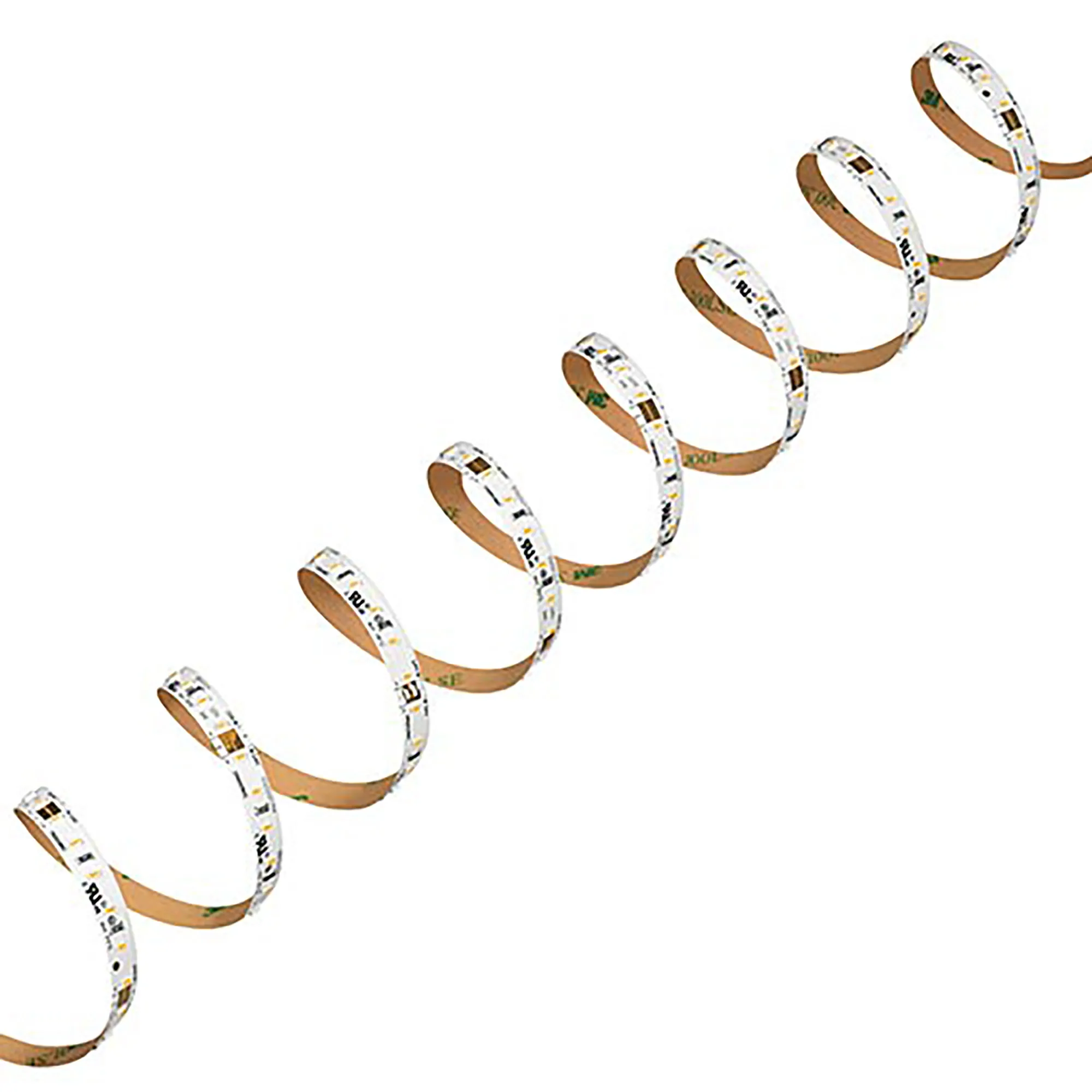

Tridonic LLE FLEX G1 8x4800 10W-1200lm/m 840 SNC, 9.8W/m, 133lm/W, 1200lm/m, IP20 4000K LED Strip.

28002104

Colour Temperature :

Qty: Order Item Add to Wishlist

Dimmable 24 V constant voltage strip, High design freedom due to 5 cm cut-options, Pitch distance of 8.3 mm enables high light homogeneity, Self-adhesive 3M tape at the backside for simple mounting on different surfaces, High efficency and Long life time.Luminous flux range of 600, 1200 and 1800 lm/m.Better color consistency.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description8x4800 10W-1200lm/m 840 SNC
Colour FinishWhite
Item Nett Weight (kg)0.055kg
Length (mm)4800m
Width (mm)8mm
Height (mm)1mm
Reel/Roll Length (m)4.8m
Cuttable Length (mm)50mm
Self Adhesive3M Branded Tape On Reverse
Energy ClassA++ to A
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)4000K Cool White (±5%)
Beam Angle (°)120°
System Flux (lm)1200lm (±5%)
CRI>80
Driver IncludedNo
Type of Driver RequiredConstant Voltage
Protection ClassClass 3 - Low Voltage
Power Per Metre (W/m)9.8W/m (±5%)
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
PCB to PCB and wire to PCB connectors for toolless handling and connection
Full Specifications
Collection GroupLLE FLEX
BarcodeTo Follow
Brief Description8x4800 10W-1200lm/m 840 SNC
Colour FinishWhite
Item Nett Weight (kg)0.055kg
Length (mm)4800m
Width (mm)8mm
Height (mm)1mm
Reel/Roll Length (m)4.8m

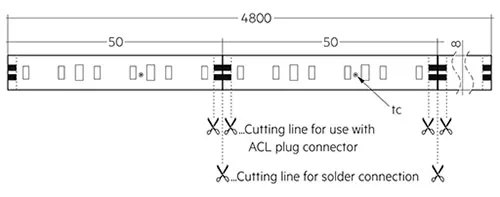

Cuttable Length (mm)50mm
Self Adhesive3M Branded Tape On Reverse
Materials UsedFPolycarbonate
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)4000K Cool White (±5%)
LED Power (W)47W (±5%)
Type of LEDSMD
Lumens Per Watt (lm/W)133lm/W (±5%)
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Beam Angle (°)120°
System Flux (lm)1200lm (±5%)
CRI>80
MacAdam5
Driver IncludedNo
Type of Driver RequiredConstant Voltage
Dimming Range (%)0-100%
Ta (°C)-20° to 45°C
Tc (°C)76°C
Connection TerminalPre-wired
Dimming ProtocolDepends on Driver
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)47W (±5%)
Power Per Metre (W/m)9.8W/m (±5%)
Input Voltage (V)24V DC
Input Current (A)2A
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Number of Cartons1
Carton Nett Weight (kg)0.055kg (±5%)
Carton Gross Weight (kg)0.055kg (±5%)
Additional DetailsTridonic LLE FLEX G1 8x4800 10W-1200lm/m 840 SNC
UK Commodity Code8539510000
Country of OriginChina
