Intego R Ecovision Slim Recessed 225mm Square (8") 18W, 6400K, 120°, Cut-Out 205x205mm

Intego Recessed Ecovision, 225mm, Square, 18W LED, Pure White, 6400K, 1500lm, 120°, White Frame, Inc. Driver, Cut Out: 205mm, 2yrs Warranty

2010830010

Colour Temperature :

Qty: Order Item Add to Wishlist

This energy saving recessed downlight, equipped with a high class aluminium casing, is the perfect combination of compact size and photometric property. All-in-one box kit includes the luminaire and an external driver with cable. It is suitable for both commercial and domestic applications where a cost effective solution is required. Available in square or round options, 3 different sizes and 4000K or 6400K colour temperature.
Techtouch is an extensive, innovative brand of LED products from Luxram. Luxram has been a recognised brand for over 60 years and are a professional company specialising in the production, marketing and distribution of a large variety of lighting sources. Luxram's strict stance for quality products in terms of reliability, stability and safety as been carried over into this new branch of lighting solutions from the Techtouch collection. The diverse variety of products from Techtouch, range from Show More...
Design by
Techtouch Design Team
As LED technology evolved and started to become a mainstream component in lighting fixtures the Luxram R & D department soon realised the that integrated LED luminaires are in principle the same as a lamp, a light source surrounded by an enclosure. Techtouch was consequently born with a dedicated team of engineers, designers and a vigorous amount of ambition to create a comprehensive range of dedicated LED products.
Quick Spec
Brief DescriptionIntego R Ecovision Slim Recessed 225mm Square (8") 18W, 6400K, 120°, Cut-Out 205x205mm
Colour FinishWhite
Colour Finish 2Opal White
Item Nett Weight (kg)0.38kg

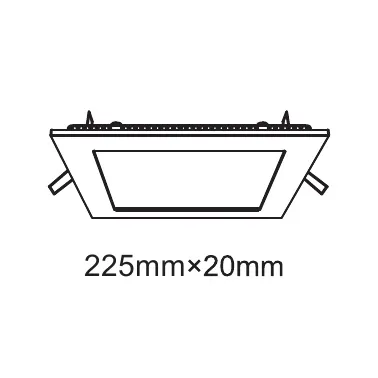

Length (mm)225mm
Width (mm)225mm
Height (mm)20mm
Cut Out (mm)205mm
Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)18W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTECHTOUCH
Colour Temperature (K)6400K Daylight White (±5%)
Beam Angle (°)120°
System Flux (lm)1500lm (±5%)
CRI>80
Driver IncludedYes
Type of Driver RequiredIncluded External
DimmableNo
IP RatingIP20
Average Life (hrs)25000hrs
Warranty (yrs)2yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupIntego R Ecovision
Catalogue Page NoEdition 12 Pg:671
Brief DescriptionIntego R Ecovision Slim Recessed 225mm Square (8") 18W, 6400K, 120°, Cut-Out 205x205mm
Catalogue DescriptionLarge Square LED Panel Light
Colour FinishWhite
Colour Finish 2Opal White
Item Nett Weight (kg)0.38kg
Length (mm)225mm
Width (mm)225mm
Height (mm)20mm
Cut Out (mm)205mm
Materials UsedPolycarbonate, Metal
Energy ClassA
Max Energy ClassA
Min Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Max Wattage Lamp (W)18W
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTECHTOUCH
Colour Temperature (K)6400K Daylight White (±5%)
Average Life of Lamp (hrs)25000hrs
No. of Switching Cycles15000
Conventional Lamp Equiv. (W)100W (±5%)
Lumens Per Watt (lm/W)83lm/W (±5%)
Beam Angle (°)120°
System Flux (lm)1500lm (±5%)
CRI>80
Driver IncludedYes
Type of Driver RequiredIncluded External
Type of DriverConstant Current
Power Factor (?)>0.5 (±5%)
Constant Current Output (mA)300mA
Min/Max. Voltage Output (V)48-62V
Ta (°C)40°C
Tc (°C)85°C
Total Power Consumption (W)18W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.145A
DimmableNo
IP RatingIP20
Average Life (hrs)25000hrs
Warranty (yrs)2yrs
UKCA/CEYes
Number of Cartons1
Carton Length (cm)27.5cm
Carton Width (cm)2.8cm
Carton Height (cm)23cm
Carton CBM0.0017
Carton Nett Weight (kg)0.38kg (±5%)
Carton Gross Weight (kg)0.425kg (±5%)
UK Commodity Code9405119090
Country of OriginChina
